Finishing
CY200 is described for finishing; CY600 for fine finishing of hardened steels and cast irons. Share your surface finish target and cutting allowance.
Home / Ceramic Inserts / CNGA

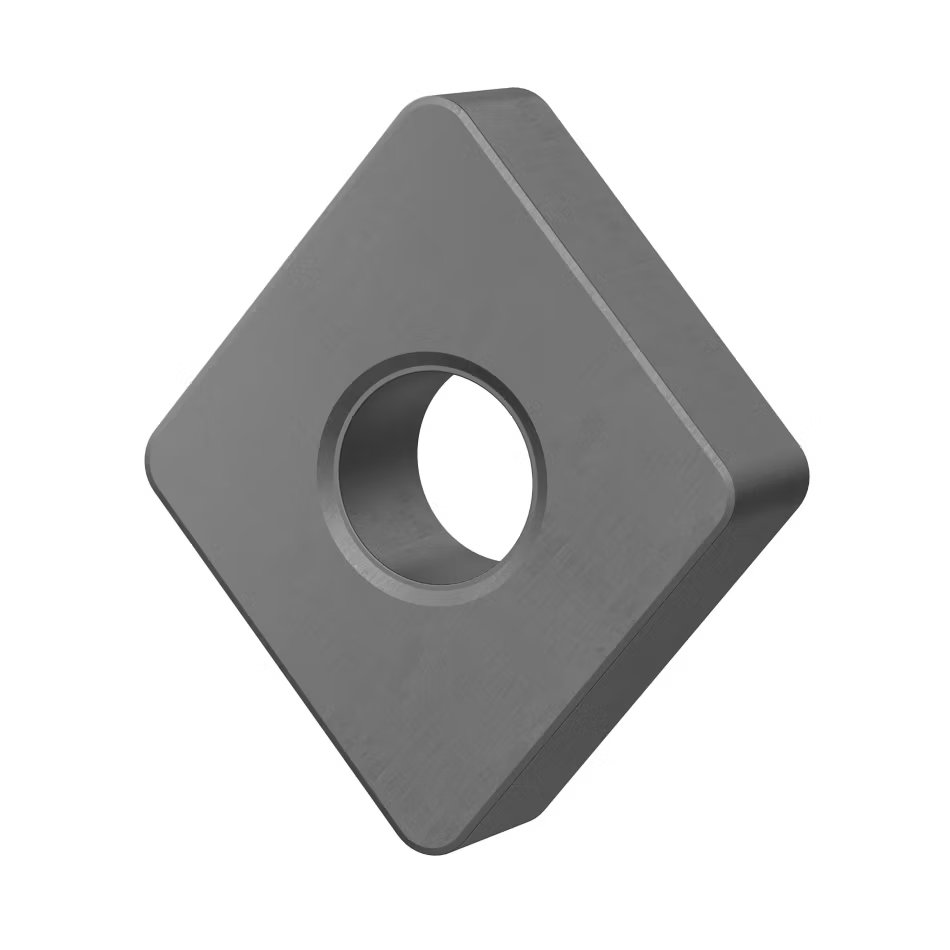

Product photo shows the CNGA family. Confirm the exact specification and edge preparation for your order.
HUAMIN TOOLS / CERAMIC TURNING INSERTS
CNGA Ceramic Inserts for Cast Iron & Hardened Steel Turning
An 80° rhombic ceramic insert family for grade-dependent turning applications. Compare dimensions, specify your machining conditions and request the right grade for your workpiece.
80° rhombic shape0° clearanceISO / ANSI references
Build your enquiry
Grade choice is an enquiry preference. Supply and compatibility will be confirmed.
Request a QuoteAsk an Application Engineer01 / SIZE & GEOMETRY
Find your CNGA specification.
Dimensions in mm. Select a row to carry its model into your enquiry.
| ISO model | ANSI / ASA | d | t | r | d1 | Enquiry |
|---|---|---|---|---|---|---|
| CNGA 120404 | CNGA 431 | 12.70 | 4.76 | 0.4 | 5.16 | |
| CNGA 120408 | CNGA 432 | 12.70 | 4.76 | 0.8 | 5.16 | |
| CNGA 120412 | CNGA 433 | 12.70 | 4.76 | 1.2 | 5.16 | |
| CNGA 120416 | CNGA 434 | 12.70 | 4.76 | 1.6 | 5.16 | |
| CNGA 120704 | CNGA 451 | 12.70 | 7.94 | 0.4 | 5.16 | |
| CNGA 120708 | CNGA 452 | 12.70 | 7.94 | 0.8 | 5.16 | |
| CNGA 120712 | CNGA 453 | 12.70 | 7.94 | 1.2 | 5.16 | |
| CNGA 120716 | CNGA 454 | 12.70 | 7.94 | 1.6 | 5.16 | |
| CNGA 160608 | CNGA 542 | 15.87 | 6.35 | 0.8 | 6.35 | |
| CNGA 160612 | CNGA 543 | 15.87 | 6.35 | 1.2 | 6.35 | |
| CNGA 160616 | CNGA 544 | 15.87 | 6.35 | 1.6 | 6.35 | |
| CNGA 160708 | CNGA 552 | 15.87 | 7.94 | 0.8 | 6.35 | |
| CNGA 160712 | CNGA 553 | 15.87 | 7.94 | 1.2 | 6.35 | |
| CNGA 160716 | CNGA 554 | 15.87 | 7.94 | 1.6 | 6.35 | |
| CNGA 190608 | CNGA 642 | 19.05 | 6.35 | 0.8 | 7.93 | |
| CNGA 190612 | CNGA 643 | 19.05 | 6.35 | 1.2 | 7.93 | |
| CNGA 190616 | CNGA 644 | 19.05 | 6.35 | 1.6 | 7.93 | |
| CNGA 190712 | CNGA 653 | 19.05 | 7.94 | 1.2 | 7.93 | |
| CNGA 190716 | CNGA 654 | 19.05 | 7.94 | 1.6 | 7.93 |

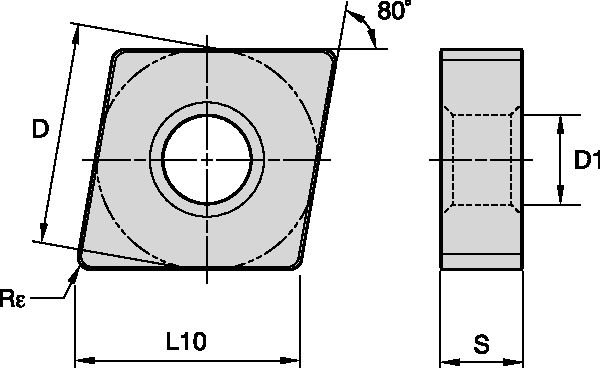

d: inscribed circle · t: thickness · r: corner radius · d1: hole dimension. Reference dimensions from the October 2026 catalog; confirm against the exact drawing before ordering.
Browse more ceramic insert shapes →02 / GRADE SELECTION
Start with your machining goal.
CY grades provide a starting point for cast iron and hardened steel enquiries. The exact grade–model combination requires confirmation.
General machining
A starting point for general machining of hardened steels and cast irons. Include interruption level and machine stability in the review.
High-speed fine finishing
For high-speed fine finishing enquiries in hardened steels and cast irons. Confirm setup, parameters and edge preparation before trials.
A suitable insert starts with the application.
Cast iron turning
Identify gray, ductile or alloy cast iron, together with hardness, allowance and interrupted surfaces.
Hardened steel turning
Provide steel designation, hardness and dimensional tolerance. Compare the ceramic and CBN options where appropriate.
Edge & holder compatibility
Provide the holder code, current insert and edge requirements. Match seat, clamp and specification before ordering.
Questions about CNGA ceramic inserts
Will this insert fit my existing holder?
Confirm the full insert and holder codes, seat geometry, thickness and clamping arrangement. A CNGA family name alone does not establish compatibility.
Which grade should I select?
Start with your material, hardness and operation. Include interruption level, speed, feed, depth of cut and finish requirements. If uncertain, choose “Recommend a grade” in your enquiry.
Are all listed models in stock?
The specification table is a reference range. Send your model, grade and quantity for supply and lead-time confirmation.
Can I use CNGA ceramic inserts for interrupted cutting?
This depends on the grade, edge preparation, workpiece and rigidity. Send details of the interrupted surfaces before deciding.
Can you review a custom specification?
Send a drawing or sample details with your machining requirements for a feasibility review.
