Finishing
CY200 is described for finishing; CY600 for fine finishing of hardened steels and cast irons. Share your surface finish target and cutting allowance.
Home / Ceramic Inserts / CNGN

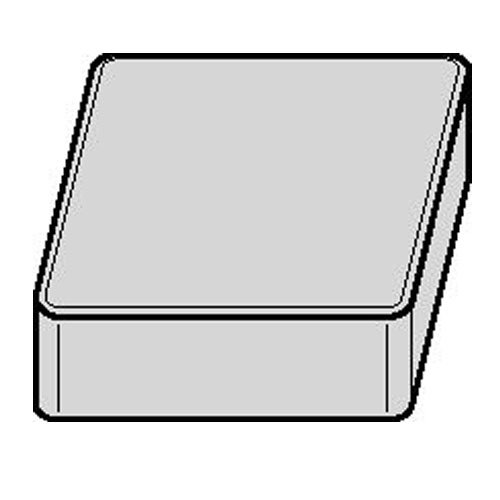

Product photo shows the CNGN family. Confirm the exact specification and edge preparation for your order.
HUAMIN TOOLS / CERAMIC TURNING INSERTS
CNGN Ceramic Inserts for Grade-Dependent Turning Applications
A rhombic ceramic insert family for grade-dependent turning applications. Compare dimensions, specify your machining conditions and request the right grade for your workpiece.
80° rhombic shape0° clearanceISO / ANSI references
Build your enquiry
Grade choice is an enquiry preference. Supply and compatibility will be confirmed.
Request a QuoteAsk an Application Engineer01 / SIZE & GEOMETRY
Find your CNGN specification.
Dimensions in mm. Select a row to carry its model into your enquiry.
| ISO model | ANSI / ASA | d | t | r | Enquiry |
|---|---|---|---|---|---|
| CNGN 090304 | CNGN 321 | 9.52 | 3.18 | 0.4 | |
| CNGN 090308 | CNGN 322 | 9.52 | 3.18 | 0.8 | |
| CNGN 090312 | CNGN 323 | 9.52 | 3.18 | 1.2 | |
| CNGN 120304 | CNGN 421 | 12.70 | 3.18 | 0.4 | |
| CNGN 120308 | CNGN 422 | 12.70 | 3.18 | 0.8 | |
| CNGN 120312 | CNGN 423 | 12.70 | 3.18 | 1.2 | |
| CNGN 120404 | CNGN 431 | 12.70 | 4.76 | 0.4 | |
| CNGN 120408 | CNGN 432 | 12.70 | 4.76 | 0.8 | |
| CNGN 120412 | CNGN 433 | 12.70 | 4.76 | 1.2 | |
| CNGN 120416 | CNGN 434 | 12.70 | 4.76 | 1.6 | |
| CNGN 120704 | CNGN 451 | 12.70 | 7.94 | 0.4 | |
| CNGN 120708 | CNGN 452 | 12.70 | 7.94 | 0.8 | |
| CNGN 120712 | CNGN 453 | 12.70 | 7.94 | 1.2 | |
| CNGN 120716 | CNGN 454 | 12.70 | 7.94 | 1.6 | |
| CNGN 160608 | CNGN 542 | 15.87 | 6.35 | 0.8 | |
| CNGN 160612 | CNGN 543 | 15.87 | 6.35 | 1.2 | |
| CNGN 160616 | CNGN 544 | 15.87 | 6.35 | 1.6 | |
| CNGN 160708 | CNGN 552 | 15.87 | 7.94 | 0.8 | |
| CNGN 160712 | CNGN 553 | 15.87 | 7.94 | 1.2 | |
| CNGN 160716 | CNGN 554 | 15.87 | 7.94 | 1.6 | |
| CNGN 160720 | CNGN 555 | 15.87 | 7.94 | 2.0 | |
| CNGN 190612 | CNGN 643 | 19.05 | 6.35 | 1.2 | |
| CNGN 190616 | CNGN 644 | 19.05 | 6.35 | 1.6 | |
| CNGN 190712 | CNGN 653 | 19.05 | 7.94 | 1.2 | |
| CNGN 190716 | CNGN 654 | 19.05 | 7.94 | 1.6 | |
| CNGN 190720 | CNGN 655 | 19.05 | 7.94 | 2.0 | |
| CNGN 250724 | CNGN 856 | 25.40 | 7.94 | 2.4 | |
| CNGN 250924 | CNGN 866 | 25.40 | 9.52 | 2.4 |
Dimensions in mm as labeled in the catalog. Reference specifications do not establish current stock; confirm the exact drawing and grade before ordering.
Browse more ceramic insert shapes →02 / GRADE SELECTION
Start with your machining goal.
The CY descriptions below are application references. Ask Huamin to confirm a suitable material system and the exact grade–model combination for this geometry.
General machining
A starting point for general machining of hardened steels and cast irons. Include interruption level and machine stability in the review.
High-speed fine finishing
For high-speed fine finishing enquiries in hardened steels and cast irons. Confirm setup, parameters and edge preparation before trials.
A suitable insert starts with the application.
Cast iron turning
Identify gray, ductile or alloy cast iron, together with hardness, allowance and interrupted surfaces.
Hardened steel turning
Provide steel designation, hardness and dimensional tolerance. Compare the ceramic and CBN options where appropriate.
Edge & holder compatibility
Provide the holder code, current insert and edge requirements. Match seat, clamp and specification before ordering.
Questions about CNGN ceramic inserts
Will this insert fit my existing holder?
Confirm the full insert and holder codes, seat geometry, thickness and clamping arrangement. A CNGN family name alone does not establish compatibility.
Which grade should I select?
Start with your material, hardness and operation. Include interruption level, speed, feed, depth of cut and finish requirements. If uncertain, choose “Recommend a grade” in your enquiry.
Are all listed models in stock?
The specification table is a reference range. Send your model, grade and quantity for supply and lead-time confirmation.
Can I use CNGN ceramic inserts for interrupted cutting?
This depends on the grade, edge preparation, workpiece and rigidity. Send details of the interrupted surfaces before deciding.
Can you review a custom specification?
Send a drawing or sample details with your machining requirements for a feasibility review.
