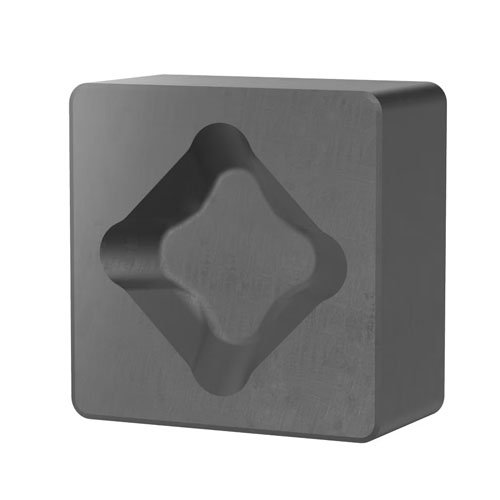

Ceramic Inserts SNGX
- Maximum Efficiency: Drastically cuts cycle times in HRSA and Hardened Steel (HRC 45–65).
- Cost-Saving Solution: Enables “turn-instead-of-grind” operations with superior surface finishes.
- Extreme Durability: Outstanding thermal shock resistance for continuous and interrupted cutting.
- Wide Application: Ideal for Cast Iron, Inconel, Stellite, and Powded Metallurgy parts.

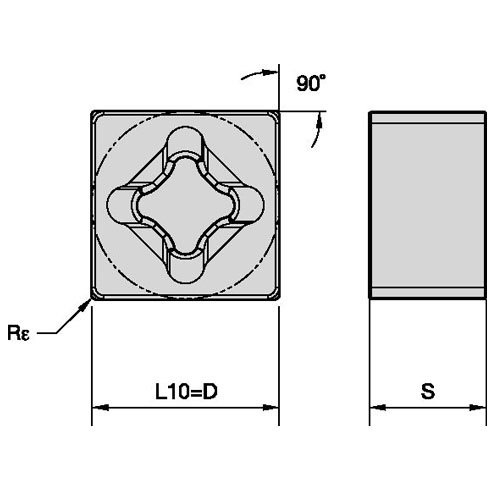

| ISO | ASA | d | t | r | D |
|---|---|---|---|---|---|
| SNGX 120408 | SNGX 432 | 12.70 | 4.76 | 0.8 | – |
| SNGX 120412 | SNGX 433 | 12.70 | 4.76 | 1.2 | – |
| SNGX 120416 | SNGX 434 | 12.70 | 4.76 | 1.6 | – |
| SNGX 120708 | SNGX 452 | 12.70 | 7.94 | 0.8 | – |
| SNGX 120712 | SNGX 453 | 12.70 | 7.94 | 1.2 | – |
| SNGX 120716 | SNGX 454 | 12.70 | 7.94 | 1.6 | – |
| SNGX 150708 | SNGX 552 | 15.87 | 7.94 | 0.8 | – |
| SNGX 150712 | SNGX 553 | 15.87 | 7.94 | 1.2 | – |
| SNGX 150716 | SNGX 554 | 15.87 | 7.94 | 1.6 | – |
Key Features
- ISO standard insert shape and dimensions
- Grade options for finishing, semi-finishing and roughing
- Suitable for high-speed turning and precision machining
- Stable tool life and surface finish
- Custom insert options available according to drawing or sample
Applications
This insert can be used for turning, finishing and semi-finishing applications depending on the selected grade, edge preparation and cutting parameters.
Recommended Workpiece Materials
Choose the material list according to product type:
- CBN inserts: hardened steel, cast iron, high-speed steel, powder metallurgy, hard ferrous materials
- Ceramic inserts: cast iron, hardened steel, heat-resistant alloys
- PCD inserts: aluminum, copper, graphite, composites, non-ferrous materials
FAQ
What is this insert used for?
This insert is used for turning, finishing or semi-finishing operations depending on the workpiece material and cutting condition.
Can Huamin Tools provide custom sizes?
Yes. Huamin Tools can provide standard ISO inserts and custom inserts according to drawings, samples or machining requirements.
How do I choose the right grade?
The grade should be selected according to material, hardness, cutting speed, machining allowance and whether the cutting condition is continuous or interrupted.
How can I get a quotation?
Send the insert type, ISO code, workpiece material, machining condition and expected quantity through the contact page.
